Established as a Proprietor firm in the year 2010, we “Jayesh Traders” are a leading Manufacturer and Trader of a wide range of Air Quality Monitor, Air Quality Meter, etc.

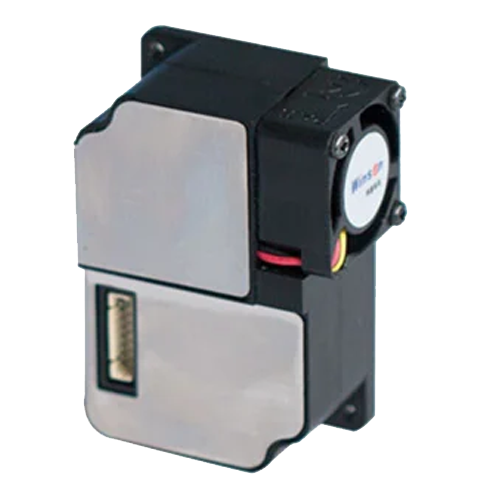

This sensor integrates infrared PM2.5 detection technology, using particle counting principle to detect PM2.5 in the environment. It can detect the particles (diameter ≥1μm). Before delivery, the sensor has been aged, debugged, calibrated and has good consistency and high sensitivity.
Specifications :
| Brand | WINSEN |
| Usage/Application | PM2.5 |
| Screwing Time for Each Screw | 0-5 SEC |
| Weight | 450Gm |
| Dimensions | 59x45x20mm |
This sensor integrates infrared PM2.5 detection technology, using particle counting before delivery, the sensor has been aged, debugged, calibrated with good consistency and high sensitivity.rinciple to detect PM2.5 in the environment. It can detect the particles (diameter ≥1μm).
Specifications :
| Brand | WINSEN |
| Mounting Type | PM2.5 |
| Screwing Time for Each Screw | 0-5 SEC |
| Weight | 450GGrm |
| Dimensions | 46.0x32.0x18.3mm |
ZH10 Compact 4-in-1 Air Quality Sensor Module is a common type, miniature size sensor module, using laser scattering principle to detect the dust particles in air, with good consistency and stability. Internal integration of MEMS, VOC, temperature and humidity sensors, processed by professional algorithms and calibrated detection processes. The sensor has good consistency and stability. The sensor has both serial output and PWM output capabilities, which is easy to use, small in size, and easy to integrate.
Specifications :
| Sensor Type | PM2.5 |
| Model Name/Number | ZH10-VHT |
| Size | 38x35x12mm(LxWxH) |
| Gas Type | PM2.5,VOC,Temperature,Humidity |

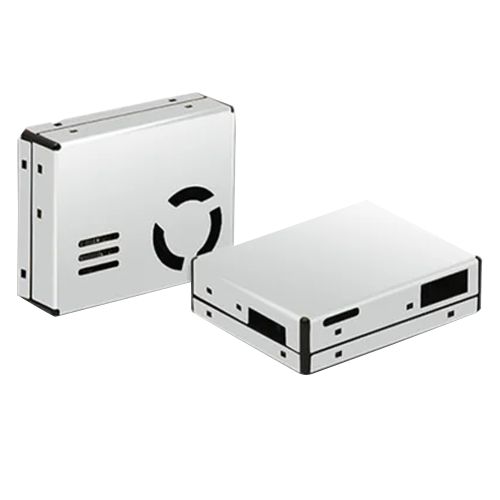

Laser Dust sensor module is a common type,small size sensor, using laser scattering principle to detect the dust particles in air, with good consistency and stability. It is easy to use, with UART & PWM output; Small size is suitable for integrating.
Specifications :
| Sensor Type | Laser Doppler |
| Usage/Application | PM1.0,PM2.5,PM10 |
| Range | 0-1000 |
| Automation Grade | Automatic |
| Material | metal |
| Color | white |
| Voltage | 5 |
| Brand | winsen |
The MEu-2CO sensor is a fuel cell sensor. Carbon monoxide and oxygen undergo a corresponding oxidation-reduction reaction on the working electrode and counter electrode and release charges to form a current. The current generated is proportional to the concentration of carbon monoxide and follows Faraday's law. The size can determine the concentration of carbon monoxide.
Specifications :
| Sensor Type | Laser Doppler |
| Usage/Application | PM1.0,PM2.5,PM10 |
| Range | 0-1000 |
| Automation Grade | Automatic |
| Material | metal |
| Color | white |
| Voltage | 5 |
| Brand | WINSEN |
ME2-CO-Ф14x5, fuel cell type sensor, detects gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be detected by measuring value of current.
Specifications :
| Sensor Type | Laser Doppler |
| Usage/Application | PM1.0, PM2.5, PM4.25, PM10 |
| Range | 0-1000 |
| Automation Grade | Automatic |
| Material | metal |
| Color | white |
| Voltage | 5 |
| Brand | WINSEN |

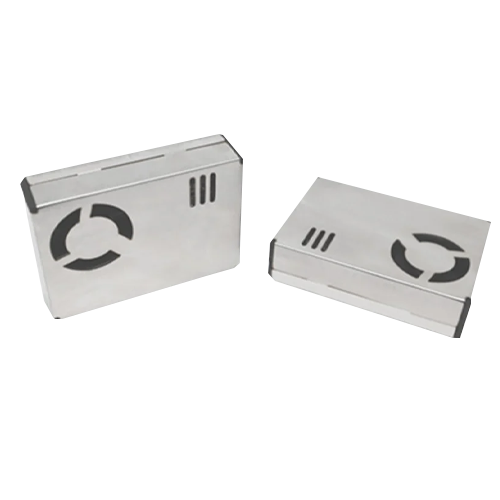

Laser Dust sensor module is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good selectivity and stability. It is easy to use, with serial port output & PWM output.
Specifications :
| Sensor Type | 90deg laser |
| Usage/Application | PM1.0,PM2.5,PM10 |
| Range | 0-1000 |
| Automation Grade | Automatic |
| Material | metal |
| Color | white |
| Voltage | 5 |
| Brand | winsen |

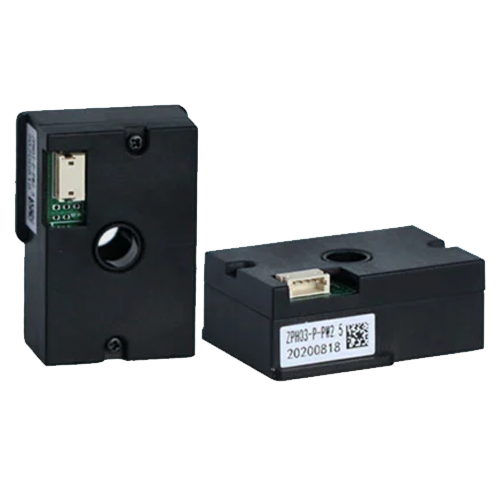

The sensor adopts the principle of optical contrast, which can accurately and quickly detect the level of dust and sewage on the optical path. The sensor has been aged and calibrated before shipment, which has a good consistency and sensitivity
Specifications :
| dust sensor | micro dust |
